MFK-032-39.3 franke condensing oil mist separator is a highly efficient oil mist purification device designed for industrial equipment and is widely used in gas turbines, steam/hydraulic turbines, compressors and hydraulic systems 56. MFK-032-39.3 oil mist separator core component is the ultra-fine glass fiber filter element (MFK-032-39.1), which uses condensation separation technology to achieve integrated filtration of oil mist, dust and water vapor, and complies with international standards such as ISO 2942 and ISO 16889.
Technical indicators: • Filtration accuracy: 0.01-0.1μm • Working pressure difference: ≤0.4MPa • Oil mist removal rate: ≥99.99% • Flow range: 200-500m³/h • Life cycle: 4500-6000h • Working temperature: -20℃~130℃ • Dust filtration efficiency: ≥99.99% • Residual oil content: ≤5 mg/m³ • Corrosion-resistant frame: polytetrafluoroethylene coating • Applicable media: Hydraulic oil, lubricating oil, compressed air

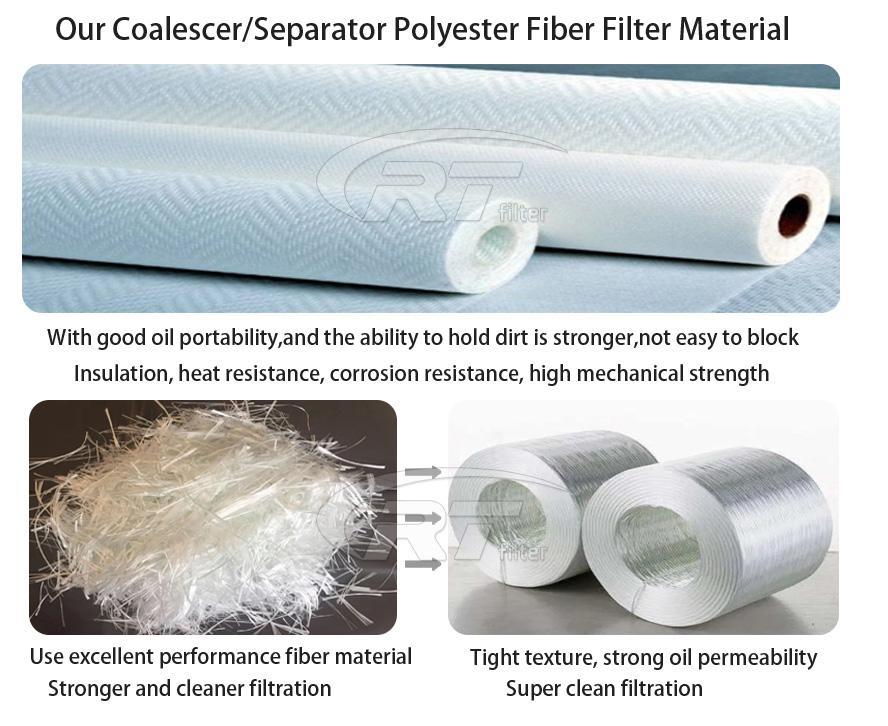

Filter Material: We produce MFK-032-39.3 oil mist separator microfibre filter uses multiple layers of ultra-fine glass fiber sintering layers to form a gradient pore structure, which has a strong oil mist capture ability. • Anti-wrinkle and anti-shrinkage performance: excellent anti-wrinkle and anti-shrinkage performance • Durability and wear resistance: high strength and elastic modulus, good durability and wear resistance • Chemical resistance: not afraid of acid and alkali chemical damage, nor afraid of mold. • Easy to dry: fast moisture absorption, moisture discharge and breathability
Application scenarios: ✅ Metal processing: Oil mist purification of cutting/grinding equipment ✅ Energy equipment: Oil mist recovery of gas turbine lubrication system ✅ Automobile manufacturing: Post-compressed air purification in paint shop ✅ Hydraulic system: Prevent oil mist deposition from causing jamming
FAQ: Q: Does it support non-standard customization? A: The filtration accuracy, interface size and shell material can be customized.
Q: MFK-032-39.3 Oil Mist Separator cartridge replacement cycle? A: Under normal working conditions, it is recommended to be 12-36 months, which actually depends on the degree of medium contamination.
Q: What is the shelf life of the MFK-032-39.3 Oil Mist Separator cartridge? A: Usually 3 years, but the storage conditions will affect the actual service life. It should be stored in a dry and dark environment.
|
