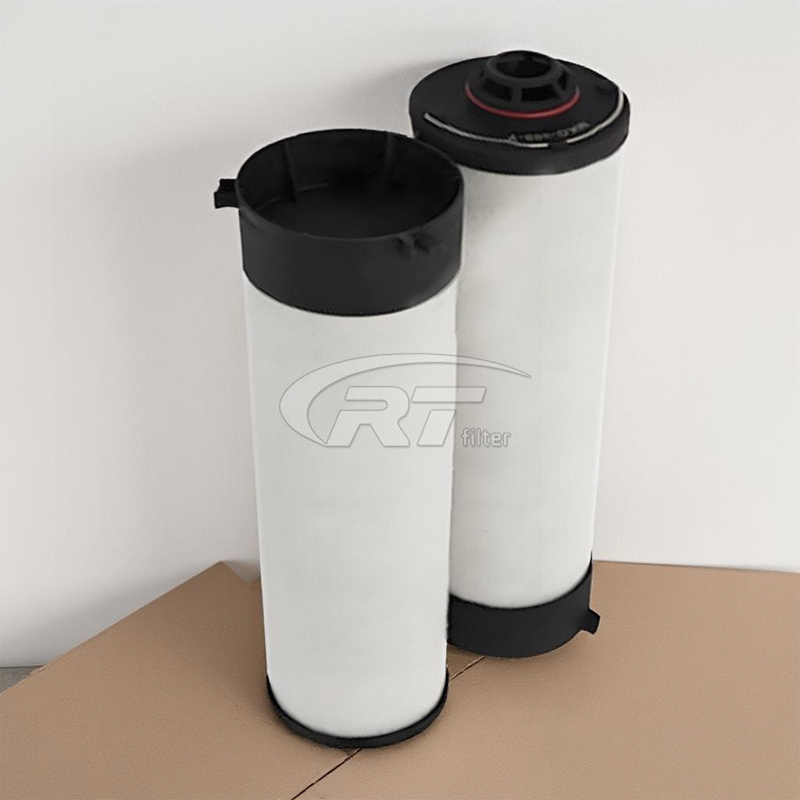

MKO-500-Y mikropor air compressor line filter is the core component of the compressed air post-processing system, widely used in manufacturing, food processing, pharmaceutical production and other fields. MKO-500-Y is designed based on international standards, compatible with multiple brands of compressors (such as Atlas, Sullair, Ingersoll Rand, etc.), providing high-precision filtration and stable performance
Technical Indicators: • Filter Rating: 0.01 micron • Filter Performance: ≥99.99% • Maximum Flow: 10m³/min • Operational Pressure: 1.0MPa • Max Operational Pressure: 2.5MPa • Rated Temp: -20℃~80℃ • Initial Pressure Drop: ≤0.02MPa • Certification Standard: ISO 8573-1 • Particle Filtration Level: Class 1(≥0.1μm)
Filter Material: Our MKO-500-Y Mikropor air compressor line filter adopts high-performance material combination and advanced process design, and has excellent performance in corrosion resistance, mechanical strength, filtration efficiency and long-term stability. • Anti-mildew and antibacterial: corrosion-resistant, resistant to most acids, alkalis and organic solvents. • Dimensional stability: low thermal expansion coefficient, small deformation under high temperature or humidity changes. • Microporous structure: the fibers are interwoven to form uniform pores, with low resistance and interception of fine particles.
Application Scenarios: ✅ Industrial manufacturing: pneumatic tools, spraying equipment, CNC machine tools ✅ Energy industry: natural gas transmission, compressed air system of power plants ✅ Food and beverage: aseptic packaging, CIP cleaning system ✅ Medical and laboratory: clean room, ventilator air supply
FAQ: Q: Does it support non-standard customization? A: The filtration accuracy, interface size and shell material can be customized.
Q: MKO-500-Y filter replacement cycle? A: Under normal working conditions, it is recommended to be 12-36 months, which actually depends on the degree of medium contamination.
Q: What is the shelf life of the MKO-500-Y filter element? A: Usually 3 years, but the storage conditions will affect the actual service life. It should be stored in a dry and dark environment.
|
